CentralStationCRM에서 태그된 사람들을 위한 간단한 이메일 자동화

• •Google 계정 및 Gmail API 인증 정보
• •Slack Bot Token 또는 Webhook URL
• •대상 API의 인증 정보가 필요할 수 있음

{
  "id": "gsJVZsZPIb5Lngwn",
  "meta": {
    "instanceId": "68ab8a7bd891eafb85f915471f38591da0135936f93fdf7e27d0ebea24fea950",
    "templateCredsSetupCompleted": true
  },
  "name": "A simple E-Mail automation for a tagged person in CentralStationCRM",
  "tags": [],
  "nodes": [
    {
      "id": "1162956d-a0c7-49f2-9251-2c0af29f17a2",
      "name": "메시지 보내기",
      "type": "n8n-nodes-base.gmail",
      "position": [
        336,
        -336
      ],
      "webhookId": "acf551ca-9814-4e8f-9f06-609443ed936e",
      "parameters": {
        "sendTo": "={{ $json.person.emails[0].name }}",
        "message": "=Hi {{ $json.person.salutation }} {{ $json.person.name }},\n\n#INSERT YOUR TEXT#\n\nBest regards\n\n#SIGNATURE#\n",
        "options": {
          "appendAttribution": false
        },
        "subject": "=Unser Gespräch",
        "emailType": "text"
      },
      "typeVersion": 2.1
    },
    {
      "id": "010d381e-0a38-4feb-a5d7-5b39cb94678f",
      "name": "Cron: 평일 17:00",
      "type": "n8n-nodes-base.scheduleTrigger",
      "position": [
        -288,
        -320
      ],
      "parameters": {
        "rule": {
          "interval": [
            {
              "field": "cronExpression",
              "expression": "0 17 * * 1-5"
            }
          ]
        }
      },
      "typeVersion": 1.2
    },
    {
      "id": "b0b1b71d-8017-49a9-ae81-0226c0192401",
      "name": "중복 제거",
      "type": "n8n-nodes-base.removeDuplicates",
      "position": [
        1104,
        -96
      ],
      "parameters": {
        "compare": "selectedFields",
        "options": {
          "removeOtherFields": false
        },
        "fieldsToCompare": "from.value[0].address"
      },
      "typeVersion": 2,
      "alwaysOutputData": true
    },
    {
      "id": "a92b9c44-3d4e-4fe6-ae18-0158970e4d9d",
      "name": "중복 제거1",
      "type": "n8n-nodes-base.removeDuplicates",
      "position": [
        1792,
        -80
      ],
      "parameters": {
        "compare": "selectedFields",
        "options": {
          "removeOtherFields": false
        },
        "fieldsToCompare": "from.value[0].address"
      },
      "typeVersion": 2,
      "alwaysOutputData": true
    },
    {
      "id": "a028cbd4-459f-4354-b82f-999022cac887",
      "name": "CRM 업데이트 가져오기",
      "type": "n8n-nodes-base.httpRequest",
      "position": [
        -96,
        -320
      ],
      "parameters": {
        "url": "https://api.centralstationcrm.net/api/people",
        "options": {},
        "jsonQuery": "={\"filter\" : {\"updated_at\": {\"larger_than\": \"{{ new Date().beginningOf('day') }}\"}},\n\"includes\" : \"tags addrs companies emails\"}",
        "sendQuery": true,
        "sendHeaders": true,
        "specifyQuery": "json",
        "authentication": "genericCredentialType",
        "genericAuthType": "httpHeaderAuth",
        "headerParameters": {
          "parameters": [
            {
              "name": "accept",
              "value": "application/json"
            }
          ]
        }
      },
      "typeVersion": 4.2
    },
    {
      "id": "c7037d7a-62f1-4484-8c82-2e33b72b6b20",
      "name": "태그 테스트",
      "type": "n8n-nodes-base.if",
      "position": [
        96,
        -320
      ],
      "parameters": {
        "options": {},
        "conditions": {
          "options": {
            "version": 2,
            "leftValue": "",
            "caseSensitive": true,
            "typeValidation": "loose"
          },
          "combinator": "or",
          "conditions": [
            {
              "id": "4b075c94-c553-4dee-a4f0-d0f501982c53",
              "operator": {
                "type": "string",
                "operation": "contains"
              },
              "leftValue": "={{ $json.person.tags }}",
              "rightValue": "\"Outreach\""
            }
          ]
        },
        "looseTypeValidation": true
      },
      "typeVersion": 2.2
    },
    {
      "id": "923918e9-5165-41e2-8272-e44811f5f64d",
      "name": "답변했는가?",
      "type": "n8n-nodes-base.if",
      "position": [
        848,
        -336
      ],
      "parameters": {
        "options": {},
        "conditions": {
          "options": {
            "version": 2,
            "leftValue": "",
            "caseSensitive": true,
            "typeValidation": "loose"
          },
          "combinator": "and",
          "conditions": [
            {
              "id": "fde577e8-0f72-4ff5-a71e-f6cd4d512b95",
              "operator": {
                "type": "string",
                "operation": "exists",
                "singleValue": true
              },
              "leftValue": "={{ $json.id }}",
              "rightValue": ""
            }
          ]
        },
        "looseTypeValidation": true
      },
      "typeVersion": 2.2
    },
    {
      "id": "1e2fe3c7-01dd-4c25-8897-b6b275b386bc",
      "name": "지난 7일 가져오기",
      "type": "n8n-nodes-base.gmail",
      "position": [
        672,
        -336
      ],
      "webhookId": "bd0cb35b-9cf9-4785-8695-d25e8f6db950",
      "parameters": {
        "limit": 10,
        "simple": false,
        "filters": {
          "q": "=from:  {{ $('test for tag').item.json.person.emails[0].name }}",
          "receivedAfter": "={{ new Date(Date.now() - 7 * 24 * 60 * 60 * 1000).toISOString() }}"
        },
        "options": {},
        "operation": "getAll"
      },
      "typeVersion": 2.1,
      "alwaysOutputData": true
    },
    {
      "id": "aed8bf29-5fb0-4730-9bea-b6193afcb7c5",
      "name": "사용자 알림",
      "type": "n8n-nodes-base.slack",
      "position": [
        1280,
        -96
      ],
      "webhookId": "d4bc8854-ec94-4da7-b8b2-215879d9b480",
      "parameters": {
        "text": "=Hi #YOURNAME#,\n\nyour contact {{ $('test for tag').item.json.person.salutation }} {{ $('test for tag').item.json.person.name }} has responded.\n\nLook it up: \n\nhttps://mail.google.com/mail/u/0/#all/{{ $json.threadId }}",
        "user": {
          "__rl": true,
          "mode": "list",
          "value": "U063KFE3KNW",
          "cachedResultName": "christian"
        },
        "select": "user",
        "otherOptions": {},
        "authentication": "oAuth2"
      },
      "executeOnce": false,
      "typeVersion": 2.3
    },
    {
      "id": "beab7970-9060-45c0-a30e-6befe4a4f6a2",
      "name": "다른 메시지 보내기",
      "type": "n8n-nodes-base.gmail",
      "position": [
        1088,
        -320
      ],
      "webhookId": "acf551ca-9814-4e8f-9f06-609443ed936e",
      "parameters": {
        "sendTo": "={{ $('get CRM updates').item.json.person.emails[0].name }}",
        "message": "=Hi {{ $('get CRM updates').item.json.person.salutation }} {{ $json.person.name }},\n\n##CONTENT OF YOUR SECOND MESSAGE##\n\nBest regards\n\n##SIGNATURE##\n\nSIGNATUR",
        "options": {
          "senderName": "Christian Lipowsky",
          "appendAttribution": false
        },
        "subject": "=Unser Gespräch",
        "emailType": "text"
      },
      "typeVersion": 2.1
    },
    {
      "id": "bd869007-756b-4478-82d8-3fa512155642",
      "name": "지난 7일 다시 가져오기",
      "type": "n8n-nodes-base.gmail",
      "position": [
        1344,
        -320
      ],
      "webhookId": "bd0cb35b-9cf9-4785-8695-d25e8f6db950",
      "parameters": {
        "limit": 10,
        "simple": false,
        "filters": {
          "q": "=from:  {{ $('test for tag').item.json.person.emails[0].name }}",
          "receivedAfter": "={{ new Date(Date.now() - 7 * 24 * 60 * 60 * 1000).toISOString() }}"
        },
        "options": {},
        "operation": "getAll"
      },
      "typeVersion": 2.1
    },
    {
      "id": "760630fa-970c-462b-bf30-210b0067417d",
      "name": "지금 답변했는가?",
      "type": "n8n-nodes-base.if",
      "position": [
        1552,
        -320
      ],
      "parameters": {
        "options": {},
        "conditions": {
          "options": {
            "version": 2,
            "leftValue": "",
            "caseSensitive": true,
            "typeValidation": "loose"
          },
          "combinator": "and",
          "conditions": [
            {
              "id": "fde577e8-0f72-4ff5-a71e-f6cd4d512b95",
              "operator": {
                "type": "string",
                "operation": "exists",
                "singleValue": true
              },
              "leftValue": "={{ $json.id }}",
              "rightValue": ""
            }
          ]
        },
        "looseTypeValidation": true
      },
      "typeVersion": 2.2,
      "alwaysOutputData": true
    },
    {
      "id": "aa362bbf-cd9c-4976-a01d-4cc71d7ad363",
      "name": "사용자 알림1",
      "type": "n8n-nodes-base.slack",
      "position": [
        1952,
        -80
      ],
      "webhookId": "d4bc8854-ec94-4da7-b8b2-215879d9b480",
      "parameters": {
        "text": "=Hi #YOURNAME#,\n\nyour contact {{ $('test for tag').item.json.person.salutation }} {{ $('test for tag').item.json.person.name }} has responded.\n\nLook it up: \n\nhttps://mail.google.com/mail/u/0/#all/{{ $json.threadId }}",
        "user": {
          "__rl": true,
          "mode": "list",
          "value": "U063KFE3KNW",
          "cachedResultName": "christian"
        },
        "select": "user",
        "otherOptions": {},
        "authentication": "oAuth2"
      },
      "executeOnce": false,
      "typeVersion": 2.3
    },
    {
      "id": "c5d41c88-d813-4212-9f54-33d34993dcf2",
      "name": "스티커 메모",
      "type": "n8n-nodes-base.stickyNote",
      "position": [
        -320,
        -1168
      ],
      "parameters": {
        "width": 528,
        "height": 592,
        "content": "![CSCRM Logo](https://s3.42he.com/cscrm-marketing-page-production/Logo_Central_Station_CRM_0dd02e23d2.jpeg)\n\n## A simple E-Mail automation for a tagged person in CentralStationCRM\n\n* time trigger using the cron format\n* gets CentralStationCRM people updates of today\n* checks for tag \"Outreach\"\n* if true, sends message on gmail (predefine in node)\n* waits 7 days, checks for answers\n* alerts user if an answer is there\n* repeats process\n\n*please test your workflow before using real contact data!! for testing, remove the wait nodes from the workflow by clicking on the trash can on the connecting lanes. then, reconnect the mail nodes to test. don't forget to reconnect the wait nodes after that, or you will flood your contact with mails.\n\nthis is meant to be an example to learn n8n, not to be a perfect execution of e-mail automation. Find ideas to make this workflow better in the project description.*"
      },
      "typeVersion": 1
    },
    {
      "id": "e12d61d0-1380-46e7-ad80-922384f330a5",
      "name": "스티커 메모1",
      "type": "n8n-nodes-base.stickyNote",
      "position": [
        -320,
        -560
      ],
      "parameters": {
        "width": 528,
        "height": 128,
        "content": "## Tools in this workflow\n* [CentralStationCRM](https://centralstationcrm.de), your easy CRM software for small teams\n* GMail, e-mail service by Google\n* Slack, fast and easy messaging tool"
      },
      "typeVersion": 1
    },
    {
      "id": "56ca8d77-8820-4cab-9c0a-c5b5ca7845b4",
      "name": "7일 대기",
      "type": "n8n-nodes-base.wait",
      "position": [
        512,
        -336
      ],
      "webhookId": "884a6f56-ccbd-47b6-9a7f-6980152dabfd",
      "parameters": {
        "unit": "days",
        "amount": 7
      },
      "typeVersion": 1.1
    },
    {
      "id": "f573b22b-c275-4094-a9b3-27b0494153df",
      "name": "스티커 메모2",
      "type": "n8n-nodes-base.stickyNote",
      "position": [
        272,
        -1328
      ],
      "parameters": {
        "color": 7,
        "width": 420,
        "height": 900,

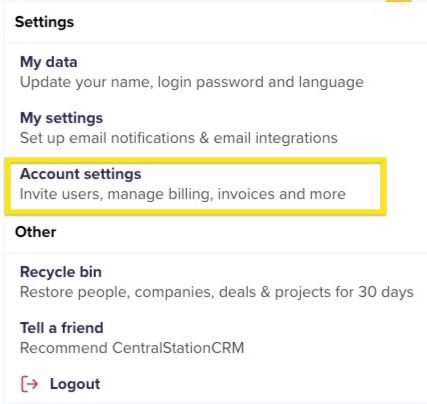

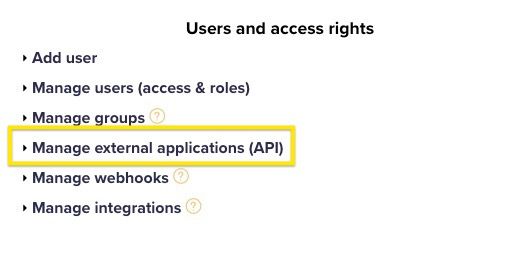

        "content": "## set up CentralStationCRM API Key\n* log in to CentralStationCRM\n* click on the gear wheel in the top right corner\n\n![Account settings](https://s3.42he.com/cscrm-marketing-page-production/CSCRM_Settings_edb73dede7.jpg)\n![API key](https://s3.42he.com/cscrm-marketing-page-production/CSCRM_Settings_API_cec6e99236.jpg)\n* click \"Create API key\" on the right-hand side\n* enter \"Description\" (e.g. n8n Test)\n* save\n* save the API key! The key cannot be called up again and is required for step 2."
      },
      "typeVersion": 1
    },
    {
      "id": "05885492-a884-4612-a328-f270e01a5aab",
      "name": "스티커 메모8",
      "type": "n8n-nodes-base.stickyNote",
      "position": [
        704,
        -1328
      ],
      "parameters": {
        "color": 7,
        "width": 440,
        "height": 900,

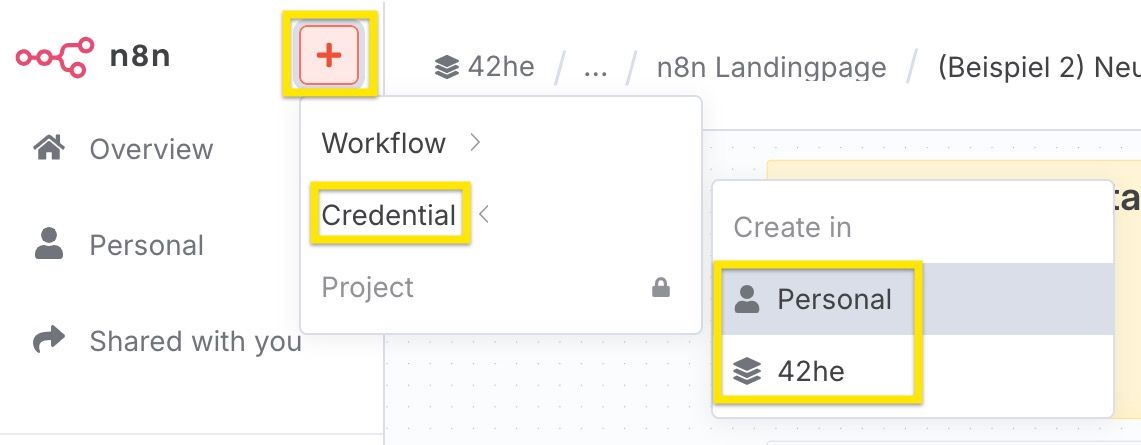

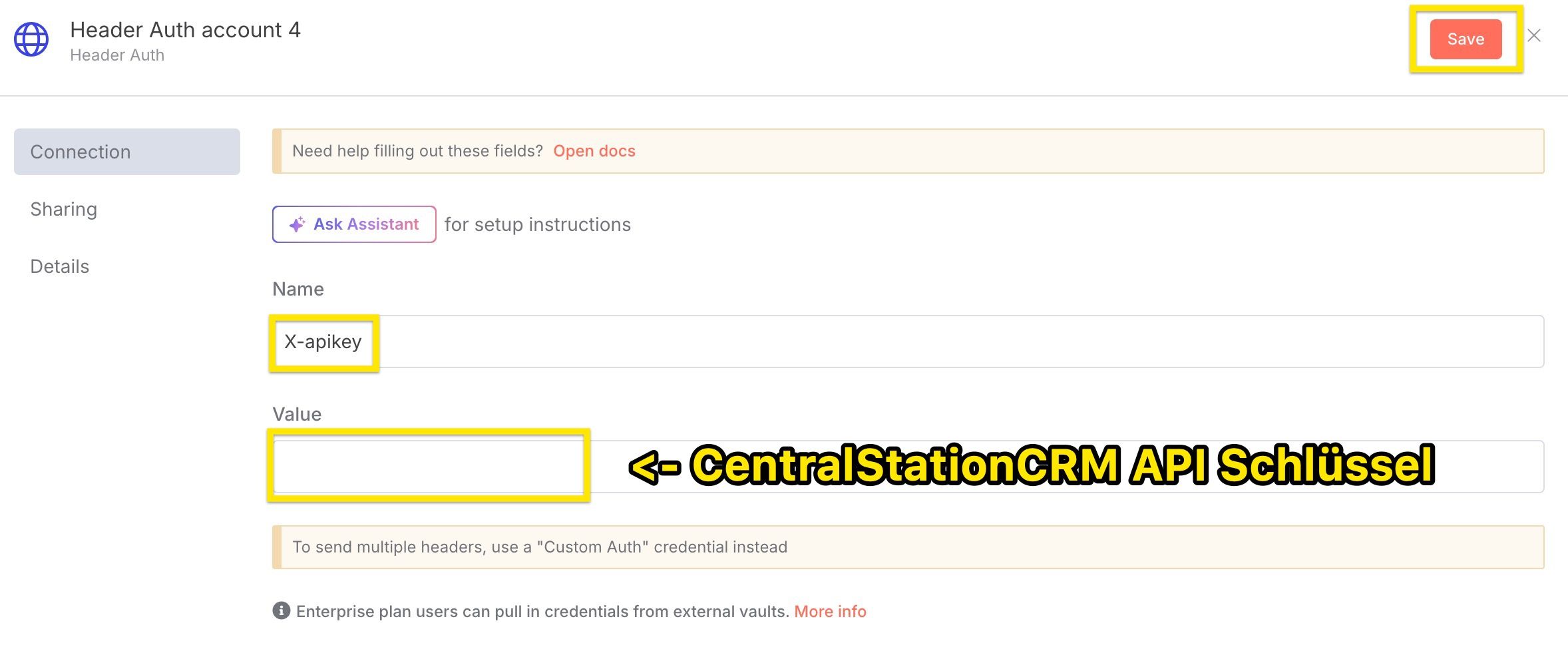

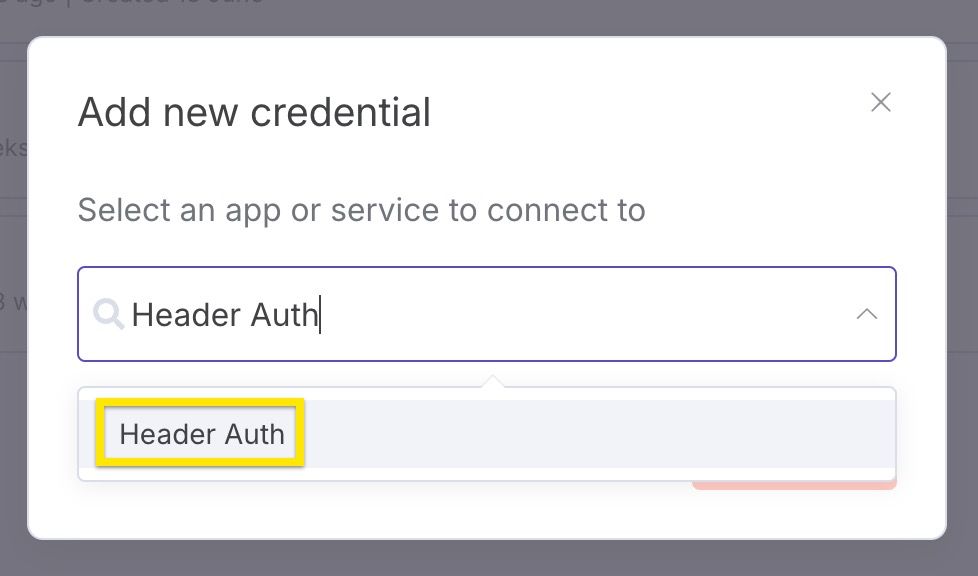

        "content": "## set up CentralStationCRM n8n credentials\n![n8n menu](https://s3.42he.com/cscrm-marketing-page-production/n8n_menu_credential_c73f8802bb.png)\n![n8n cred type](https://s3.42he.com/cscrm-marketing-page-production/n8n_Header_Auth_f635973075.png)\n![n8n cscrm apikey](https://s3.42he.com/cscrm-marketing-page-production/n8n_cscrm_credential_9690dfc9a2.jpg)\nImportant:\n* select Header Auth as credential type\n* assign X-apikey as name\n* enter the CentralStationCRM API key under \"Value\""
      },
      "typeVersion": 1
    },
    {
      "id": "c43c8f76-e71f-4ee8-a0a1-4715b16b61c1",
      "name": "스티커 메모3",
      "type": "n8n-nodes-base.stickyNote",
      "position": [
        1168,
        -1328
      ],
      "parameters": {
        "color": 7,
        "width": 868,
        "height": 892,

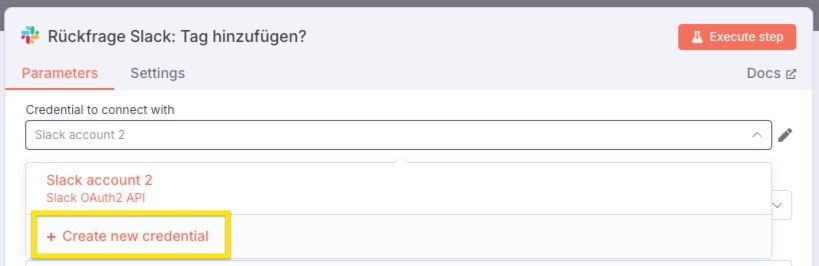

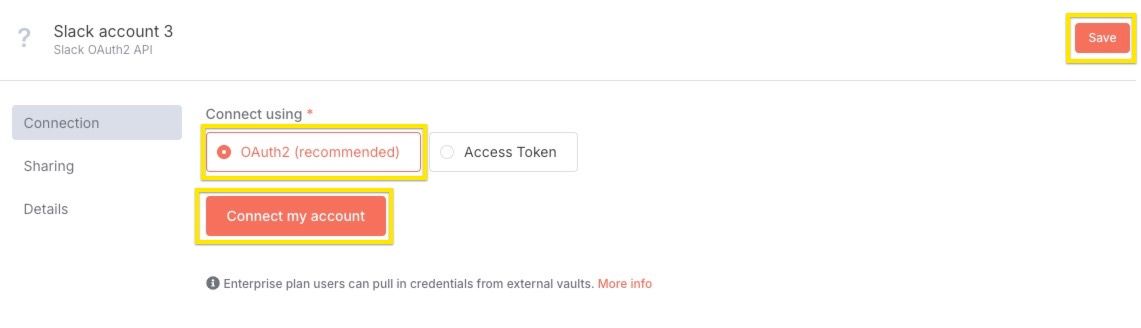

        "content": "## set up Slack nodes\n* set up Slack credentials\n![Credentials](https://s3.42he.com/cscrm-marketing-page-production/Slack_Credential_0cab4ad78e.png)\n![Credentials new](https://s3.42he.com/cscrm-marketing-page-production/Slack_Connect_Account_d1cc2420f3.jpg)\n* choose your credential in the two slack nodes\n* User (By Username): Enter @SlackUsername\n* Customize text under \"Message\" if necessary\n\n## set up Google nodes\n* set up Gmail credentials (Connect with Google)\n* choose your credentials in the four GMail nodes"
      },
      "typeVersion": 1
    }
  ],
  "active": false,
  "pinData": {},
  "settings": {
    "executionOrder": "v1"
  },
  "versionId": "85dd4cf8-4b8a-49df-89b7-f8566a255605",
  "connections": {
    "923918e9-5165-41e2-8272-e44811f5f64d": {
      "main": [
        [
          {
            "node": "b0b1b71d-8017-49a9-ae81-0226c0192401",
            "type": "main",
            "index": 0
          }
        ],
        [
          {
            "node": "beab7970-9060-45c0-a30e-6befe4a4f6a2",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "aed8bf29-5fb0-4730-9bea-b6193afcb7c5": {
      "main": [
        []
      ]
    },
    "56ca8d77-8820-4cab-9c0a-c5b5ca7845b4": {
      "main": [
        [
          {
            "node": "1e2fe3c7-01dd-4c25-8897-b6b275b386bc",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "760630fa-970c-462b-bf30-210b0067417d": {
      "main": [
        [
          {
            "node": "a92b9c44-3d4e-4fe6-ae18-0158970e4d9d",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "c7037d7a-62f1-4484-8c82-2e33b72b6b20": {
      "main": [
        [
          {
            "node": "1162956d-a0c7-49f2-9251-2c0af29f17a2",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "1162956d-a0c7-49f2-9251-2c0af29f17a2": {
      "main": [
        [
          {
            "node": "56ca8d77-8820-4cab-9c0a-c5b5ca7845b4",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "a028cbd4-459f-4354-b82f-999022cac887": {
      "main": [
        [
          {
            "node": "c7037d7a-62f1-4484-8c82-2e33b72b6b20",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "1e2fe3c7-01dd-4c25-8897-b6b275b386bc": {
      "main": [
        [
          {
            "node": "923918e9-5165-41e2-8272-e44811f5f64d",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "b0b1b71d-8017-49a9-ae81-0226c0192401": {
      "main": [
        [
          {
            "node": "aed8bf29-5fb0-4730-9bea-b6193afcb7c5",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "a92b9c44-3d4e-4fe6-ae18-0158970e4d9d": {
      "main": [
        [
          {
            "node": "aa362bbf-cd9c-4976-a01d-4cc71d7ad363",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "010d381e-0a38-4feb-a5d7-5b39cb94678f": {
      "main": [
        [
          {
            "node": "a028cbd4-459f-4354-b82f-999022cac887",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "beab7970-9060-45c0-a30e-6befe4a4f6a2": {
      "main": [
        [
          {
            "node": "bd869007-756b-4478-82d8-3fa512155642",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "bd869007-756b-4478-82d8-3fa512155642": {
      "main": [
        [
          {
            "node": "760630fa-970c-462b-bf30-210b0067417d",
            "type": "main",
            "index": 0
          }
        ]
      ]
    }
  }
}
